Technical Property Guide

System Solutions for Smoke Ventilation and Natural Ventilation – Engineering, Safety & Indoor Climate

Modern building automation demands rigorous energy efficiency alongside failsafe life safety. Combining certified smoke and heat exhaust ventilation (SHEV) with automated natural ventilation delivers properties with superior indoor climate and premier fire safety – seamlessly integrated into the same facade and control architecture.

Life Safety & SHEV

Certified Smoke Ventilation (EN 12101)

During a fire incident, toxic smoke and heat present the greatest hazard to human life. An engineered smoke ventilation system automatically opens smoke vents and facade windows in stairwells, atriums, and escape routes to keep corridors free of smoke and facilitate firefighting access.

Fully compliant with BBR regulations and EN 12101-2 natural smoke vent standards.
72-hour battery backup power supply in accordance with EN 12101-10.
Supervised fire alarm loops and manual break-glass call points with priority override.

Explore smoke control panels

Indoor Climate & Energy

Natural Ventilation & Night Cooling

Natural ventilation utilizes thermal buoyancy (stack effect) and wind pressure to supply continuous fresh air without noisy mechanical fan coils. The system regulates indoor temperature and CO2 concentrations with pinpoint precision in educational, commercial, and public facilities.

Automated night purging reduces daytime cooling energy demand by 30–50%.
Demand-controlled window opening based on temperature and indoor air quality sensors.
Substantially reduced operational energy consumption and carbon footprint.

Explore natural ventilation systems

Actuators & Bus Automation

Actuator Sizing & MotorLink® BMS

Actuator selection is governed by window dimensions, weight, opening stroke, and aerodynamic requirements. WindowMaster MotorLink® technology provides true digital bus control with millimeter precision, speed modulation, and full two-way feedback to building management systems.

Compact chain and spindle actuators providing pushing forces up to 1,500 N.
Seamless integration into BMS/SCADA infrastructure via BACnet, KNX, or Modbus.
Real-time position feedback, anti-entrapment monitoring, and diagnostic alerts.

View chain actuator range

Engineering Checklist for Window Automation Systems

Actionable guidance for architects, MEP/fire engineers, and property managers:

Contact our engineering team for sizing calculations

1. Window geometry & aerodynamic area

Identify opening type (top-hung outward, bottom-hung, roof light) and calculate both geometric and aerodynamic free area (Av).

2. Safety classification & voltage

Select 24V DC with battery backup for life-safety smoke ventilation or 230V AC for dedicated comfort ventilation installations.

3. Weather protection & entrapment safety

Integrate rain and wind weather sensors to prevent moisture damage alongside certified anti-pinch safety under EN 60335-2-103.

4. Regulatory compliance & maintenance

Establish an accredited maintenance protocol for annual functional audits and battery replacement schedules.

Three Technical Pillars

Comprehensive Building Control Systems

01

Natural Ventilation

Automated natural airflow and night-purge cooling, reducing energy demands while guaranteeing pristine indoor air quality and CO2 regulation.

Explore natural ventilation

02

Certified Smoke Exhaust

EN 12101-2 certified emergency smoke exhaust panels and chain actuators featuring 72-hour battery standby for life safety.

Explore smoke ventilation

03

BMS & KNX Integration

MotorLink® microprocessor technology with millimeter positioning accuracy, status feedback, and native connection to building management systems.

Explore MotorLink® drives

System Catalog

Product Categories & Systems

Complete engineered systems for automated natural ventilation, hybrid night cooling, and certified life-safety smoke exhaust. Designed for seamless integration into contemporary Nordic architecture.

Certified life safety systems compliant with EN 12101-2 & EN 12101-10

MotorLink® digital bus technology with millimeter-precise feedback

Factory joinery pre-milling and concealed mounting via Lenhovda

Explore Full Catalog

01

Chain Actuators

Silent, powerful and discrete window actuators (150N - 500N) for surface and concealed in-frame mounting.

02

Natural Vent Units

Intelligent power supplies and climate automation panels (3A - 20A) supporting apps, MotorLink® and BMS/KNX.

03

Smoke Control Units

Life-safety emergency smoke exhaust units certified to EN 12101-2 with 72-hour battery standby.

04

Brackets & Fittings

Precision-engineered brackets for inward and outward opening sashes in timber, aluminium and composite.

05

Accessories & Sensors

Rain and wind sensors, optical smoke detectors, break-glass manual call points and wireless remotes.

Featured Systems

Proven Engineering for Architecture & Industry

From concealed in-frame actuators to modular 20A multi-zone controllers with digital bus networking.

View Complete Catalog

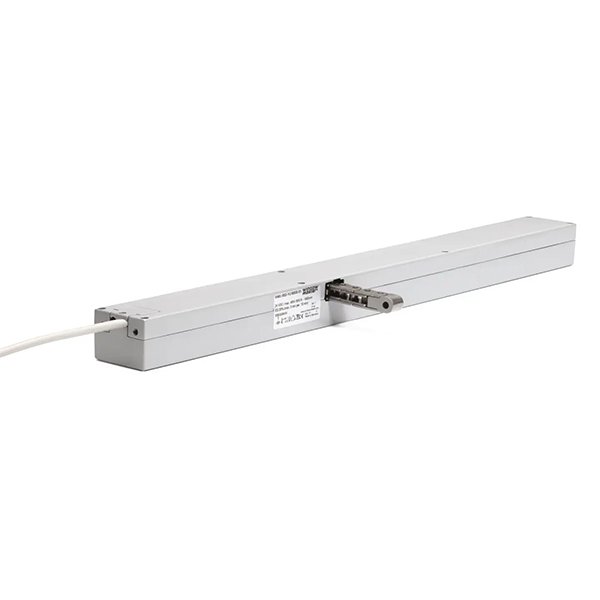

WMU 831

300 N

Chain Actuator 300N 1A, Natural Ventilation & Smoke Exhaust

300N push/pull force, 24V DC, suitable for comfort and certified smoke ventilation

Push/Pull Force 300 N
Stroke Length 250 - 500 mm
Operating Voltage 24V DC
Power Consumption 1.0 A

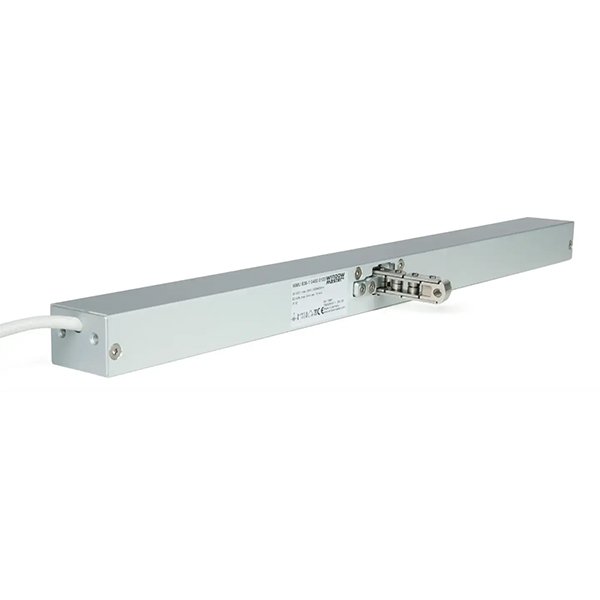

WMU 836

300 N

Chain Actuator 300N 1A, Natural Ventilation & Smoke Exhaust

300N force featuring microprocessor control and MotorLink® technology

Push/Pull Force 300 N
Stroke Length 300 - 600 mm
Operating Voltage 24V DC
Power Consumption 1.0 A

WMU 852

500 N

Chain Actuator 500N 2A, Natural Ventilation & Smoke Exhaust

Maximum force and high-speed emergency opening upon fire alarm activation

Push/Pull Force 500 N
Stroke Length 300 - 1000 mm
Operating Voltage 24V DC
Power Consumption 2.0 A

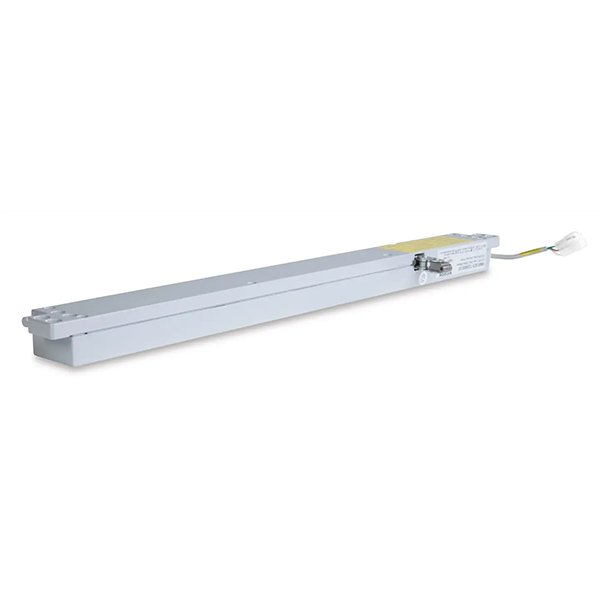

WMX 823

200 N

Concealed Chain Actuator 200N 1A, Natural Ventilation & Smoke

Fully concealed in-frame actuator for invisible window automation

Push/Pull Force 200 N
Stroke Length 200 - 500 mm
Operating Voltage 24V DC
Power Consumption 1.0 A

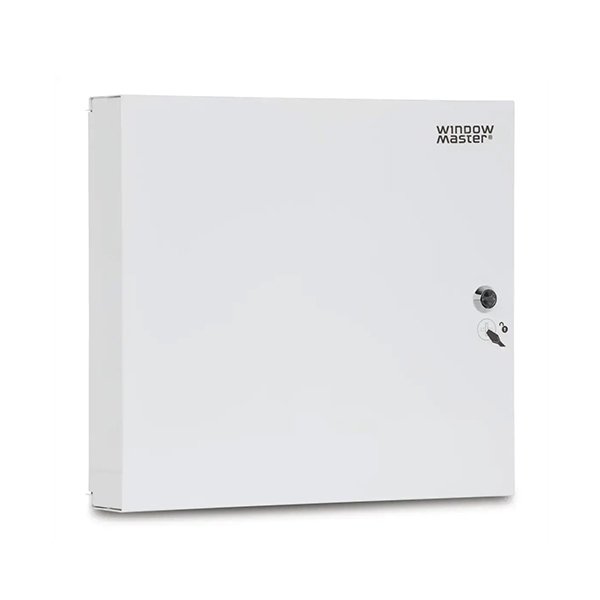

WCC 320 P

20 A

Control Unit 20A, up to 10 Zones, PLUS

Modular building control panel for extensive multi-zone installations

Operating Voltage 230V AC -> 24V DC
Output Current 20 A
Zone Capacity Upp till 10 zoner
Features MotorLink®, BMS-kortplats, programmerbar logik

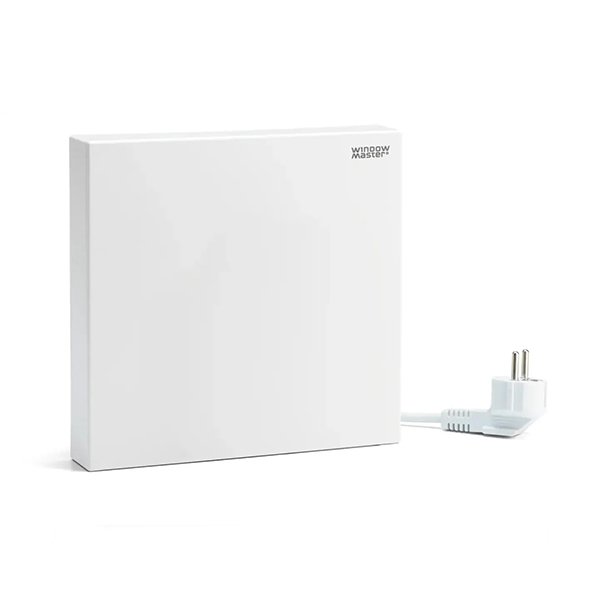

WCC 106 A

6 A

Control Unit 6A, 2 Zones, App or Remote Control

Smart residential & boutique panel with wireless app and remote control

Operating Voltage 230V AC -> 24V DC
Output Current 6 A
Zone Capacity 2 zoner
Features Appstyrning, fjärrkontroll, plug & play sensorer

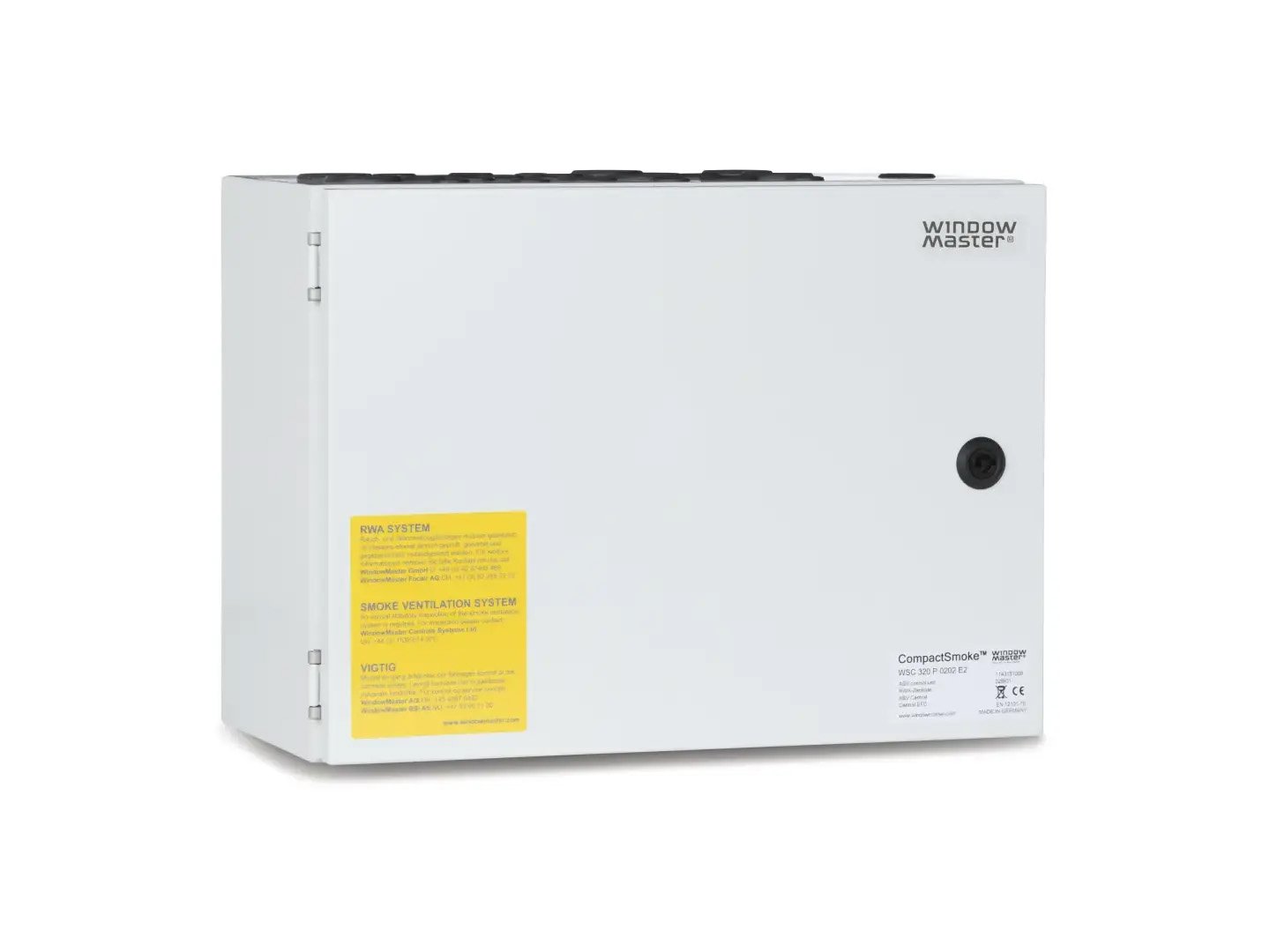

WSC 320 P

EN 12101-2

Smoke Control Unit 20A, up to 10 Zones, PLUS

Certified smoke exhaust panel (EN 12101-2) with 72h battery backup

Operating Voltage 230V AC med 24V batteribackup
Output Current 20 A
Zone Capacity Upp till 10 zoner
Certification SS-EN 12101-2, CE, RWA / NSHEV

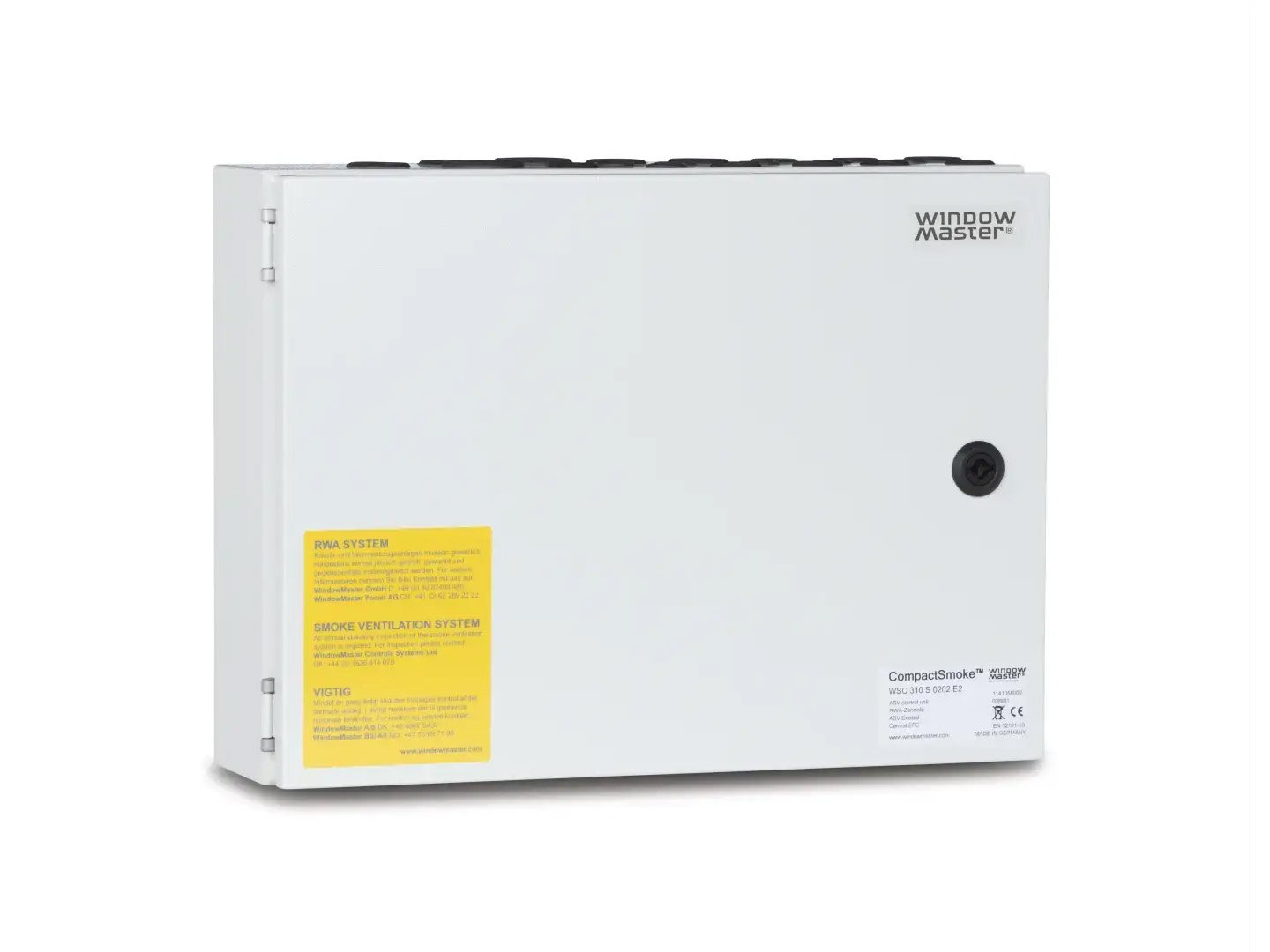

WSC 310 P

EN 12101-2

Smoke Control Unit 10A, 2 Zones, PLUS

Certified 10A smoke exhaust panel with internal battery backup

Operating Voltage 230V AC med 24V batteribackup
Output Current 10 A
Zone Capacity 2 zoner
Certification SS-EN 12101-2, CE, RWA / NSHEV

Group Synergy in Småland

Integrated Actuation for Bespoke Facades

Autowin collaborates seamlessly with sibling companies within AMAWOOD AB, delivering pre-integrated motorized hardware into premium timber fenestration crafted in Lenhovda.

Architecture & Sliding Systems

Let There Be Light

Let There Be Light: Bespoke luxury architectural timber sliding and bifold systems.

Visit ltbl.se

Bespoke Arched & Round Windows

Formfönster

Formfönster: Custom-shaped round and arched windows with 5-axis CNC precision.

Visit formfonster.com

Panoramic Lift & Slide Doors

View Skjutdörrar

View: Large panoramic timber lift-slide doors with zero-threshold accessibility.

Visit view-line.se

Industrial Contract Manufacturing

LMAB Småland

LMAB: Industrial contract manufacturing, CNC routing and robotic finishing.

Visit lm-ab.se

Engineering Advisory

Direct Engineering Support from Lenhovda

Need help sizing window drives, calculating free aerodynamic area for smoke evacuation, or configuring MotorLink® controllers?

Certified calculations according to European standard EN 12101-2

Factory pre-milling and concealed mounting via AMAWOOD joinery

Complete wiring schematics and bus commissioning support

Request Project Support

Anders Ekström

Technical Advisory & Sales Autowin

+46 73 153 59 50

anders.ekstrom@amawood.se

Vagnvägen 10, 364 42 Lenhovda

0474-218 00 (AMAWOOD AB)
